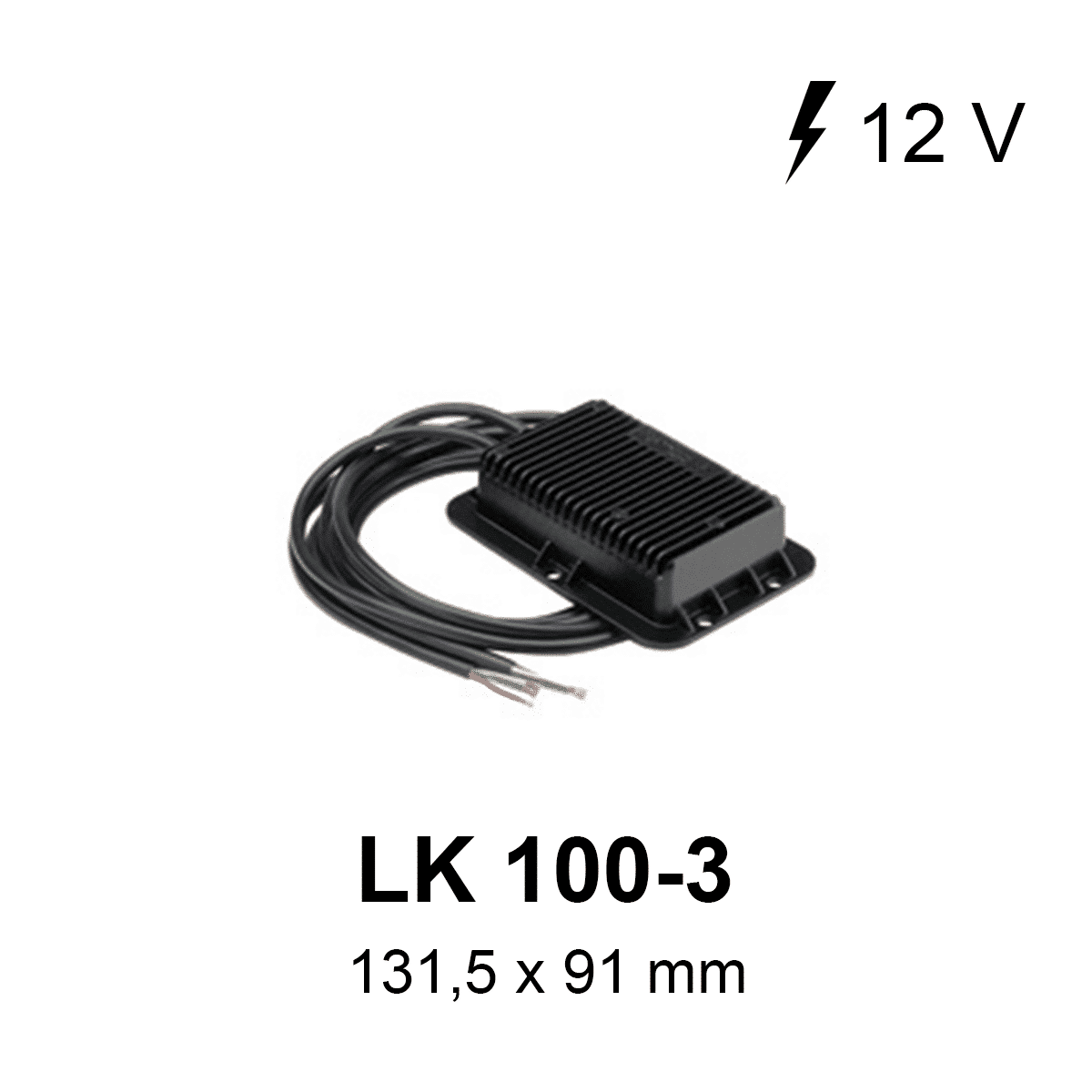

Description
– LED failure control for left and right DI light
– may be used only in combination with „warm check“
– incl. 2 high power resistors (simul. of 21W-incand. lamp)
– aluminium housing / completely sealed electronics
– for fixation on even, metallic surfaces
– incl. 2 cables (1.5m) for left/right light (4×0.75mm²)
– ON 100% (flashing operation), IP 67
– automatic overtemperature protection
.- 32 x 91 x 131 mm
– important notice:
(1) all newly developed LED lights (incl. „LDC“ ->
LED-Defect-Control) can be used with LK 100b-1. For old light models
special versions of LK 100 are required (LK 100-2 / -3…)
(2) installation manual must be respected!
– suitable for lights: BL 726/12 2a; BL 727/12 2a; BBS 730/12 2a; BBS 735/12 2a
