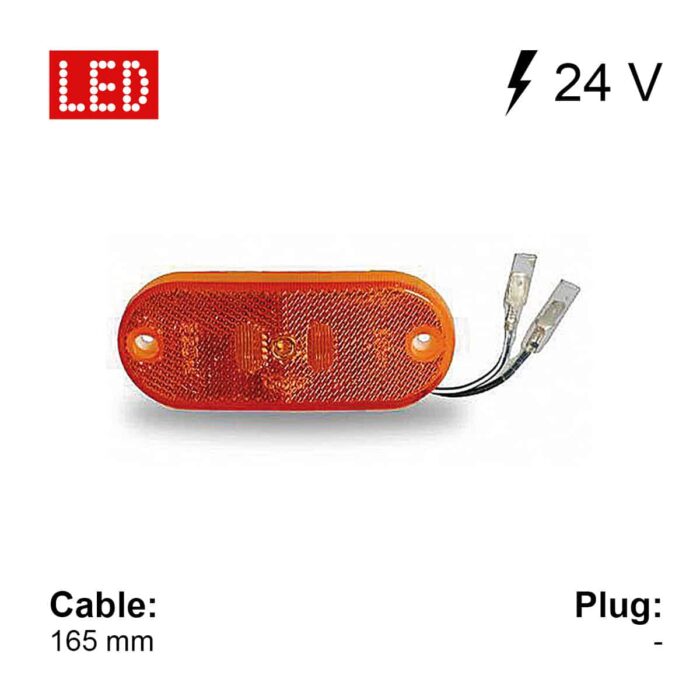

The LED Side Marker Lights SMLR 2002 have an integrated reflector and are available in 12 V, 24 V or 12/24 V versions. Variants with cable connection,
recessed blade terminals and double AMP connection are also available.
– SAE DOT – FMVSS report for North America
– surface mounting
– variants with flexible angle bracket on request
– connecting cable with flat terminals
– double flat tabs (2 x 2,8 mm) in the base of the lamp (L 2003)
– 2-integrated AMP-Connectors (L 2004)
– sealed in a waterproofed manner and ready for plug-in
| Features | Side marker light, reflex reflector |
|---|---|
| Voltage | 24 V |
| Power | 1,2 W |
| Material / Colour | PMMA / ABS |
| Cable | 165 mm |
| Plug | – |
| Weight | 0,04 kg |
| IP - Protection class | IP 67 |
| PU | 100 pcs. |
| Homologation | E2-0062 |
